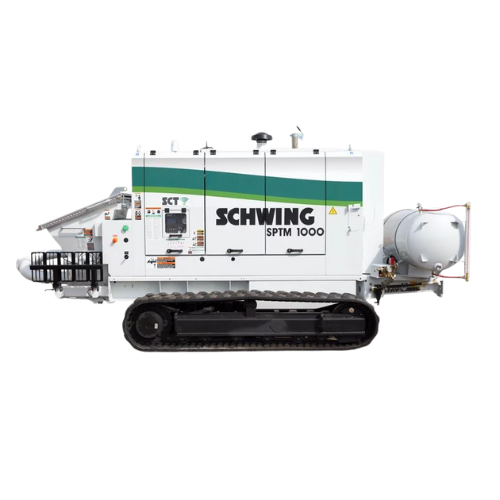

• Front view of the Schwing SPTM 1000 with a track-mounted undercarriage.

Schwing SPTM 1000 | Powerful and Versatile Track-Mounted Pump | Tier 4 Final

Awaiting stock, shipping soon

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

The Schwing SPTM 1000 is a powerful and versatile track-mounted pump, built for efficient concrete handling on rugged terrain. Powered by a Tier 4 Final CAT C4.4 137 hp engine with CAT Telematics, it features a 7” x 39” chrome-lined cylinder, twin circuit hydraulics, and a 150-gallon water tank for maximum job site efficiency. Designed for medium-scale projects, it offers durability and consistent performance.

Specifications

Model Schwing SPTM 1000
Mounting Track Mounted
Concrete output 70 cu yd/hr
Max pressure on concrete 1,100 psi
Max aggregate size 1.5 in
Concrete cylinder (dia. x stroke) 7" x 39"
Concrete valve Long Rock Valve
Engine CAT C4.4 Tier 4 Final with CAT Telematics
Engine power 137 hp
Fuel tank 39 gal
Water tank 150 gal
Hopper capacity 13 cu ft
Hopper height 51 in
Undercarriage Rubber track undercarriage
Outrigger legs Hydraulic
Length 19' 8"
Width 6' 6"
Height 8' 0"
Shipping weight 15,700 lb (7,121 kg)
Part number SPTM-1000

On site it measures 19' 8" long by 6' 6" wide and 8' 0" high, loads through a 13 cu ft hopper at 51 in, and ships at 15,700 lb. It rides on a self-propelled rubber-track undercarriage, so it moves across rough ground and between pours without a tow vehicle. Check hopper height against your ready-mix trucks and confirm the shipping weight against your trailer rating before scheduling delivery.

Disclaimer: Price includes the pump only. Optional accessories are available for customization.

Contact the Western Mixer sales team to configure optional add-ons, arrange freight, or discuss financing on this unit.
