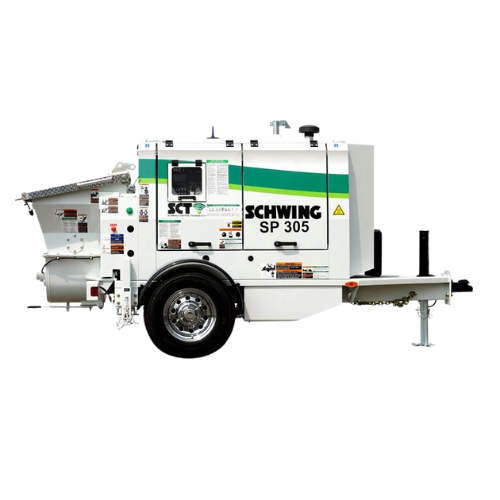

The Schwing SP 305 Trailer-Mounted Concrete Pump is a versatile and reliable solution for a wide range of concrete pumping applications. Powered by a Tier 4 Final CAT C2.2 engine, this pump delivers exceptional performance with a concrete output of up to 30 cubic yards per hour. Featuring a compact trailer design, durable construction, and advanced Schwing Control Technology (SCT), it is built for efficiency, portability, and ease of operation. The SP 305 is perfect for projects requiring precision and high-performance concrete placement.
Specifications
| Model |
Schwing SP 305 |
| Mounting |
Trailer Mounted |
| Concrete output |
30 cu yd/hr |
| Max pressure on concrete |
642 psi |
| Max aggregate size |
0.75 in |
| Concrete cylinder (dia. x stroke) |
5" x 30" |
| Concrete valve |
Rock Valve |
| Engine |
CAT C2.2 Tier 4 Final |
| Engine power |
49.6 hp |
| Fuel tank |
15 gal |
| Hopper capacity |
8 cu ft |
| Hopper height |
42 in |
| Undercarriage |
Single axle |
| Outrigger legs |
Manual |
| Length |
12' 8" |
| Width |
5' 8" |
| Height |
5' 10" |
| Shipping weight |
3,680 lb (1,669 kg) |
| Part number |
SP-305 |
On site it measures 12' 8" long by 5' 8" wide and 5' 10" high, loads through a 8 cu ft hopper at 42 in, and ships at 3,680 lb. It rides on a single axle towable chassis with manual outriggers. Check hopper height against your ready-mix trucks and confirm the shipping weight against your trailer rating before scheduling delivery.
Disclaimer:
Price listed is for the trailer-mounted pump only. Optional add-ons and accessories are not included and can be customized to meet your project requirements. Specifications and pricing are subject to change.
Contact the Western Mixer sales team to configure optional add-ons, arrange freight, or discuss financing on this unit.
