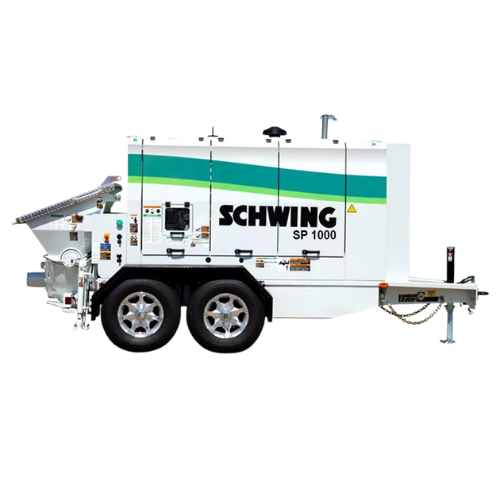

• Schwing SP 1000 Trailer Pump with Long Rock Valve and tandem axle design

Schwing SP 1000 Stationary Concrete Pump | High-Performance Tier 4 Final Pump

Awaiting stock, shipping soon

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

The Schwing SP 1000 Trailer Pump is designed for reliability and performance in high-pressure concrete applications. Featuring a Tier 4 Final CAT C4.4 diesel engine with 137 horsepower, this pump delivers up to 70 cubic yards per hour with a maximum pressure of 1,100 PSI. Engineered with a robust Long Rockβ„’ valve, chrome-lined concrete cylinders, and dual gear pumps, it ensures smooth operation for challenging construction projects. Its compact trailer-mounted design, with tandem axles and manual outriggers, provides easy portability and stability.

Specifications

Model Schwing SP 1000
Mounting Trailer Mounted
Concrete output 70 cu yd/hr
Max pressure on concrete 1,100 psi
Max aggregate size 1.5 in
Concrete cylinder (dia. x stroke) 7" x 39"
Concrete valve Long Rock Valve
Engine CAT C4.4 Tier 4 Final
Engine power 137 hp
Fuel tank 39 gal
Hopper capacity 13 cu ft
Hopper height 51 in
Undercarriage Tandem axle
Outrigger legs Manual
Length 16' 5"
Width 6' 6"
Height 8' 0"
Shipping weight 9,300 lb (4,218 kg)
Part number SP-1000

On site it measures 16' 5" long by 6' 6" wide and 8' 0" high, loads through a 13 cu ft hopper at 51 in, and ships at 9,300 lb. It rides on a tandem axle towable chassis with manual outriggers. Check hopper height against your ready-mix trucks and confirm the shipping weight against your trailer rating before scheduling delivery.

Disclaimer:
The listed price includes the base pump only. Optional add-ons are available for purchase and installation directly from the factory. Verify compatibility with your project requirements before purchase

Contact the Western Mixer sales team to configure optional add-ons, arrange freight, or discuss financing on this unit.
